- Place of Origin: XI'AN CHINA
- Brand Name: HY-FLEXO
- Model Number: HYTB-B

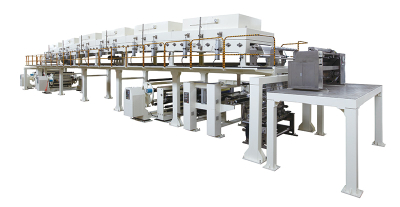

HYTB-B Series Precise Coating Machine
Parameters:
Web: | PET, PI, PE, Copper foil, Aluminum foil |
Web width: | 300mm ~ 1900mm |
Coating method: | Micro gravure coating, Comma coating, slot die, Gravure coating, Gravure forward coating / reverse coating |
Lamination method: | Three rolls directly pressure or two rolls laminate, the clearance between pressure rolls can be adjusted. |
Max. Mechanical speed: | 60m/min (coating speed depends on difference technic) |
Unwind / Rewind dia.: | Dual station rotary type, UnwindΦ800mm, RewindΦ1000mm |
Unwind / rewind: | Conic air expanding shaft or safety chuck (3” or 6”) |
Control: | Servo drive |
Drying: | Guide roll oven hot air drying, electric heating, oil heating, gas heating |
Option: | Vac-sorb device, Dust removal device, Electric corona device, UV solidifying device, Storage device, Unwind automatic cutter, Rewind fly cutter. |
Technical Features |
