- Place of Origin: xi'an china
- Brand Name: HY-FLEXO
- Model Number: HY-108

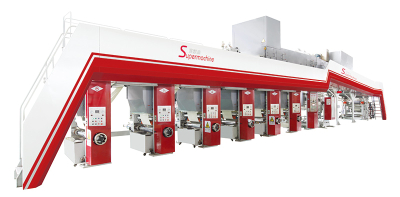

Printing & Embossing Wallpaper Production Line
| gravure printing wallpaper production line is suitable for printing PVC coated paper, non-woven paper, pure paper etc. Especially for the deep embossing (grammage is more than 450 g/㎡). |
Parameters:
| Specification | 800, 1200 |
| Substrate | PVC coated paper 120-800g/㎡ pure paper 90-200g/㎡ non woven 110-170g/㎡ |
| Printing Precision | Printing Register Precision ±0.15mm Embossing Register Precision ±0.40mm |
Printing Speed | 80m/min (Max.) |
Max. Embossing Depth | 1.5mm |
Max. Embossing Pressure | 12bar |
Finished Width | type 800: 700mm, 530mm type 1200: 1060mm, 920mm |
Heating method | electrical heating, guide heat oil, gas heating |
Features ● The first wallpaper machine combining servo control technology and automatic register in China; ● Printing images are static monitored in real time, which effectuates simple operation. ● Remote error detection technology. ● Technology of deep embossing, quickly cooling and shaping; Pneumatic pressure system. ● Energy-efficiency foaming oven, heat transforming efficiency is up to 91%. ● CE certificate.
Configurations ● Radiators are high efficiency winding pipes. ● Embossing pull roller’s speed can be adjusted during running to steady the tension at the oven inlet. ● Upper and lower cutting system. ● Rewind small rolls automatically. |
