- Place of Origin: xi'an china
- Brand Name: HY-FLEXO
- Model Number: S120

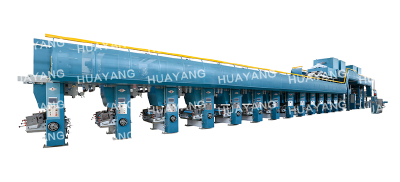

Full Servo Rotary Screen & Gravure Printing Wallpaper Production Line
| Combination of the rigorous design and perfect technique give this machine unique and precise performance. |
Technical parameters:
| Specification | 800、1200 |
| Substrate |
PVC coated paper 120-650g/㎡ |
| Register precision | Gravure: ±0.15mm Rotary: ±0.40mm |
Aligning precision | ±0.40mm |
Printing speed | 100m/min (Max.) |
Finished Width | type 800: 700mm, 530mm type 1200: 1060mm, 920mm |
Heating method | electrical heating, guide heat oil, gas heating |
Features and configurations:
● Germany technology, aerospace precision manufacturing. ● Automatic register, high precision, quickly adjustment and less waste. ● Whole structure for basic plates only need to adjusted rotary screen head, never to tweak screen net. ● Advantage technology in the world, directly push back impression roller structure, good angel for doctor blade. ● Germany rotary screen head synchronization digital double servo motor driven, only need one time transferring, ● Increase inside diameter size of screen head, which is friendly for directly fill in ink paste and suitable ● High air speed and strong convection which has big return hot air system, high effective drying and ● Servo driven, high precision, automatic and reliability. |
