- Place of Origin: xi'an china
- Brand Name: HY-FLEXO
- Model Number: HY-96

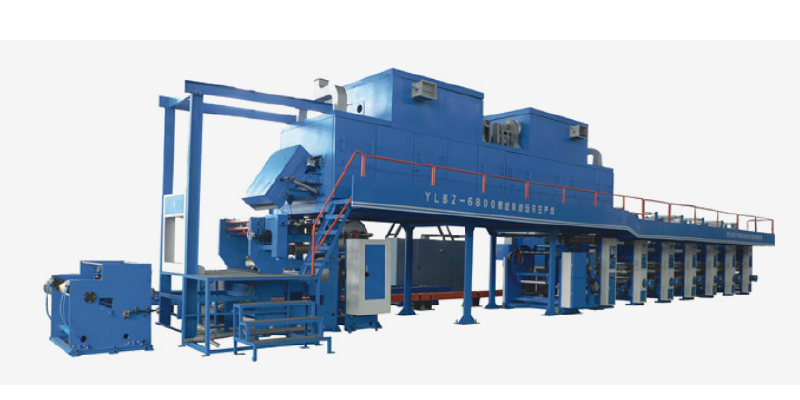

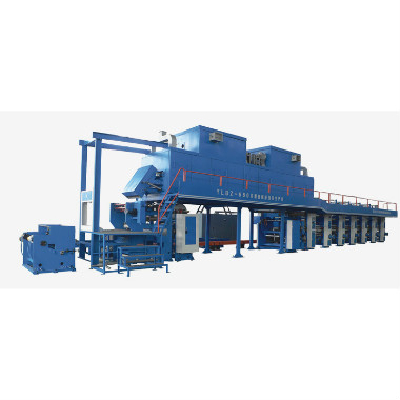

"YLBZ" Series Wallpaper Printing & Embossing Production Line (HY-96)
The machine is suitable for producing small batch and multiple types wallpaper. It is available for 6 or 8 colorsand can print on PVC coated paper, pure paper, non-woven paper etc. As one of the most cost-effective type, this machine is welcome by small and medium size enterprises. |
Technical parameters:
Substrate | PVC coated paper 120~500g/m2 Pure paper 90~200g/m2 Non-woven paper 110~170g/m2 |
Printing Precision | Printing Register Precision ±0.15mm Embossing Register Precision ±0.40mm |
Printing Speed | 60m/min (Max.) |
Finished Width | 700mm、530mm |
Heating Method | electrical heating, guide heat oil, gas heating |
Features and configurations:
● Stable synchronous high precision embossing and registration, ensuring a good printing quality. ● The range of temperature in the foaming oven is controlled within ±2℃, no chromatic difference during continuous printing. ● High production speed. ● Machine frame is made of HT250 cast iron, precisely manufactured in five-axis NC machining center. |
