Super wide width wallpaper production line

Super wide width wallpaper production line

  • Min.Order Quantity: 1 Set
  • Supply Ability: 20 Sets per Year
  • Port: shanghai port
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:1999-07-09
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  xi'an china
  • Brand Name:  HY-FLEXO
  • Model Number:  N240

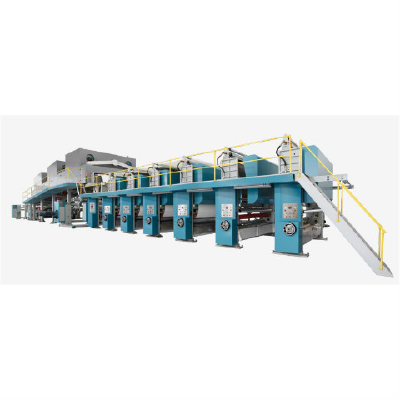

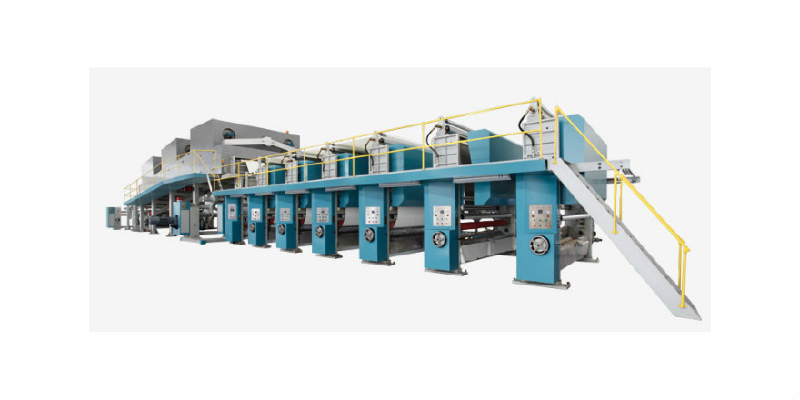

"Supermachine" Super wide width wallpaper production line



Special for big clients, big orders, high quality, without claim.



  Item                                                                Values


   Wallpaper width                                     2400mm-3000mm


   Printing material                                    Coating PVC paper 120-400g/㎡
                                                                     Pure paper 90-200g/㎡
                                                                     Non-woven 110-170 g/㎡


  Printing precision                                   Printing register precision ±0.20mm
                                                                     Embossing register precision±0.40mm


   Printing speed                                       50m/min (Max.)


   Heating                                                   guide hot oil, gas heating


●  Lateral paste wall cloth, one pieces cloth one room, which will solve the "match flower, overflow glue,
    lifting edge" issues.

●  Wide width wall cloth size 3000mm×1500mm, big flower distance it is provided big creative space.

●  The machine can produce no groove and big distance wall cloth, and also can covering silk, thread
    and flocking etc on wall cloth surface.

●  Aerospace sophisticated technique and realize more longer precision parts manufacturing, which is
    make sure the width and common production keep in the same level precision.

●  The machine can produce no groove and big distance wall cloth, and also can covering silk, thread
    and flocking etc on wall cloth surface.

●  Finite element design system to optimize big width oven structure, which will let oven three-dimensional
    temperature and air keep second orderlinear relation, then keep the air speed and heat equality inside of
    big width oven and avoid the difference color caused by drying.

●  Double backed impression rollers and quickly cooling for deeply embossing, double closed loop tension
    servo motor synchronization embossing register technology, it can produce the big width PVC synchronization
    embossing register products.

●  One set big width no groove wall cloth production capability be equivalent to standard wallpaper 5 times.

●  High effective, high input and output ratio, save labors, unit products energy consumption less and low cost.


  • Place of Origin:  xi'an china
  • Brand Name:  HY-FLEXO
  • Model Number:  N240

"Supermachine" Super wide width wallpaper production line



Special for big clients, big orders, high quality, without claim.



  Item                                                                Values


   Wallpaper width                                     2400mm-3000mm


   Printing material                                    Coating PVC paper 120-400g/㎡
                                                                     Pure paper 90-200g/㎡
                                                                     Non-woven 110-170 g/㎡


  Printing precision                                   Printing register precision ±0.20mm
                                                                     Embossing register precision±0.40mm


   Printing speed                                       50m/min (Max.)


   Heating                                                   guide hot oil, gas heating


●  Lateral paste wall cloth, one pieces cloth one room, which will solve the "match flower, overflow glue,
    lifting edge" issues.

●  Wide width wall cloth size 3000mm×1500mm, big flower distance it is provided big creative space.

●  The machine can produce no groove and big distance wall cloth, and also can covering silk, thread
    and flocking etc on wall cloth surface.

●  Aerospace sophisticated technique and realize more longer precision parts manufacturing, which is
    make sure the width and common production keep in the same level precision.

●  The machine can produce no groove and big distance wall cloth, and also can covering silk, thread
    and flocking etc on wall cloth surface.

●  Finite element design system to optimize big width oven structure, which will let oven three-dimensional
    temperature and air keep second orderlinear relation, then keep the air speed and heat equality inside of
    big width oven and avoid the difference color caused by drying.

●  Double backed impression rollers and quickly cooling for deeply embossing, double closed loop tension
    servo motor synchronization embossing register technology, it can produce the big width PVC synchronization
    embossing register products.

●  One set big width no groove wall cloth production capability be equivalent to standard wallpaper 5 times.

●  High effective, high input and output ratio, save labors, unit products energy consumption less and low cost.
