- Place of Origin: xi'an china
- Brand Name: HY-FLEXO
- Model Number: YAD-P

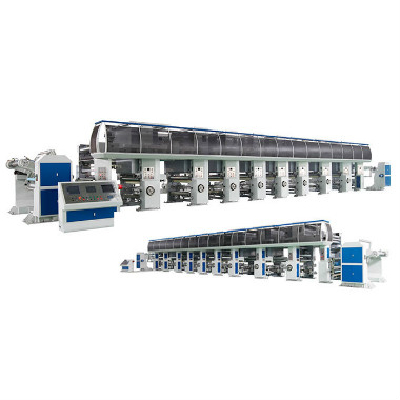

"YAD-P" Gravure Press for Carton Preprinting
| This machine is used for printing on paper, especially preprinting for cartoon. As one of the most cost-effective gravure printing machine, it is capable of printing on paper web (80-320 gsm) at maximum 150m/min. Excellent tension control and register system enable this machine to achieve best printing quality. |
Parameters:
Item Values
Material Paper ( 80-320 g/㎡)
Print units 5 to 9
Max. print width 1200mm / 1400mm / 1600mm / 1800mm / 2000mm
Max. Mechanical Speed 180m/min
Max. Printing Speed 150m/min
Max. printing repeat length 1600mm
Register Accuracy Longitudinal ≤ ±0.15 mm (Auto.),
Lateral ≤ ±0.15 mm (Manual)
Max. Unwind / Rewind Dia. Φ 1200 mm / Φ 1200 mm
Paper Core Dia. 6”
Print pressure 4000kg
Max. splice speed 150m/min
Drying system Electric / Steam / Oil
Total Motor Power 280 KW
Air Pressure 0.6 MPa
Machine size 28.7mx4.3mx3.8m
Machine weight 60000kg
Features and configurations:
● Able to printing colorful and large batch of carton; printing quality equals to offset printing. ● Automatic register; image monitoring system. ● Imported motors; frequency motors for close-loop tension control system. ● Pneumatic doctor blade. ● Web roll pre-drive type; non-stop roll change without stopping the machine. ● Three roller impression, ensuring the even pressure on the full web. ● Efficient drying system. |
